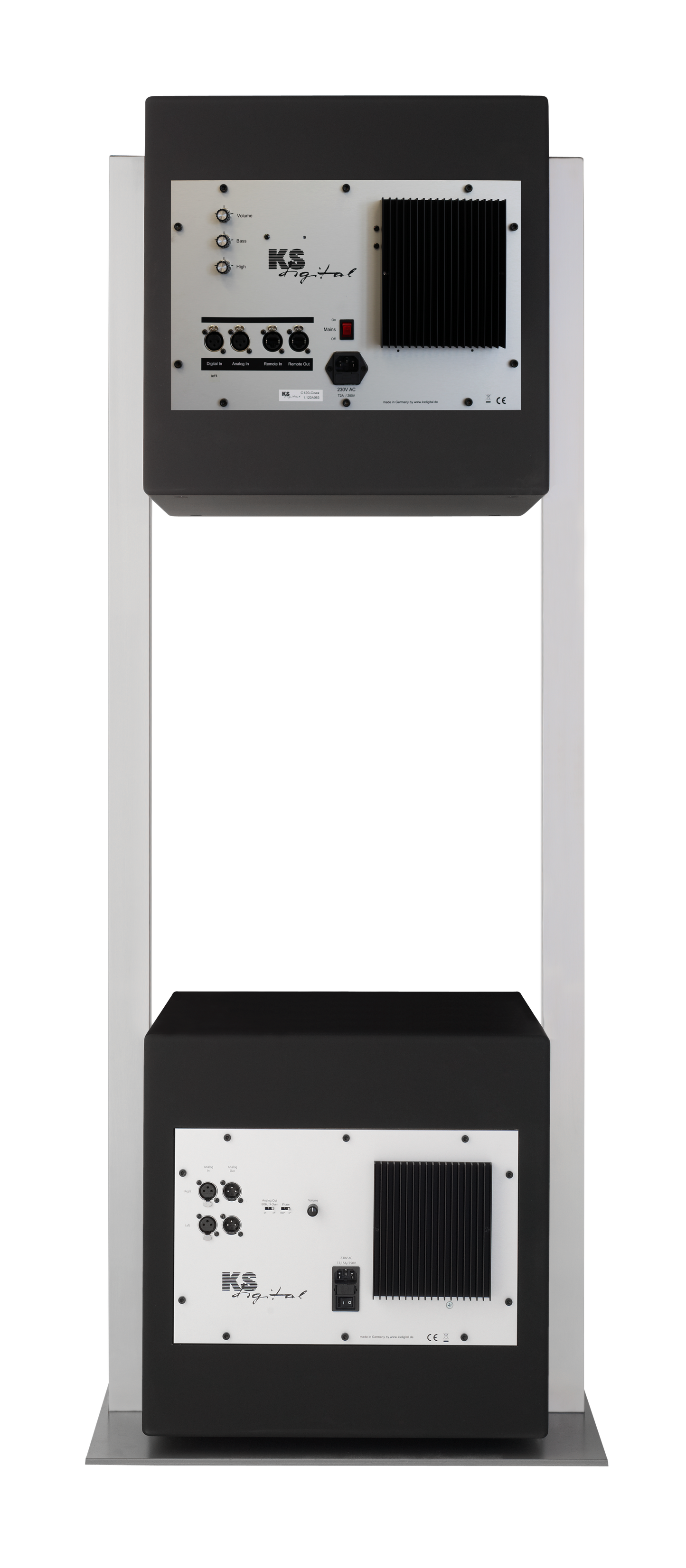

Coaxmaster - C120 Reference & CB150 Subwoofer
The coaxial main monitor system: Coaxial master: C120-Coax full-range monitor & bass extension CB150
The Coaxmaster system is a modular system of various coordinated components. The main areas of application are recording studios for classical to rock recordings, video and film studios. But mastering studios also rely on the CX system as an unerring reference monitor.
The scalable size allows adaptation to the existing control room, either the C120-Coax as a full-range coax monitor (without sub-extension), or the complete 15″ bass extension CB150 as a coax master in the included stand. The monitor controller KSD-RC allows perfect adaptation to the room acoustics and installation.
The compact housing shape of the cube with an edge length of 45 cm even allows for mobile use. Many successful producers, mastering studios or radio and television such as SWR or ZDF work with the C-120 or the Coaxmaster system.
The acoustic advantages of the CX system:
Phase-locked coupling of the emitted sound to the input signalSpot beam source
Compact housing dimensions with full bandwidth from 25Hz and high usable SPL
Technical data of the Coaxmaster
- 2-way coax point sound source,
- Signal processing:
- in FPGA in 24 Bit ADC/DAC FIRTEC(™) patent:19823110
- FIR-Xover, Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain
- 1” neodymium high horn driver
- 12″ high-performance bass mid-chassis
- Power amplifiers 250 W / 250 W
- SPL (max) >140 dB peak/pair
- Frequency response 25 – 22000 Hz
- Weight 32 kg including packaging 34 kg
- Dimensions 450 x 450 x 480 mm
- Accessories: CX stand stainless steel
- Remote Control (optional) KSD-RC controls 6 user EQs, volume, delay etc.
-
chassis: 15“ high performance driver (CB150)
process: digitally controlled by C-120
amplifier: 1000W peak
frequency range: 22 – 80Hz (+/3 dB)
dimensions: 45.0 x 45.0 x 48.0 cm
weight: 32kg
CB150 Bass unit in motion:
