KSD Audio

C55 Reference - 2.5-way Coaxial Monitor

C55 Reference - 2.5-way Coaxial Monitor

Regular price €1.849,00 EUR
Regular price Sale price €1.849,00 EUR
Sale Sold out
19% VAT included - prices per unit - Shipping free of charge
Farbe
  • Find a local dealer
  • 14 days revocation
  • Free Shipment
View full details

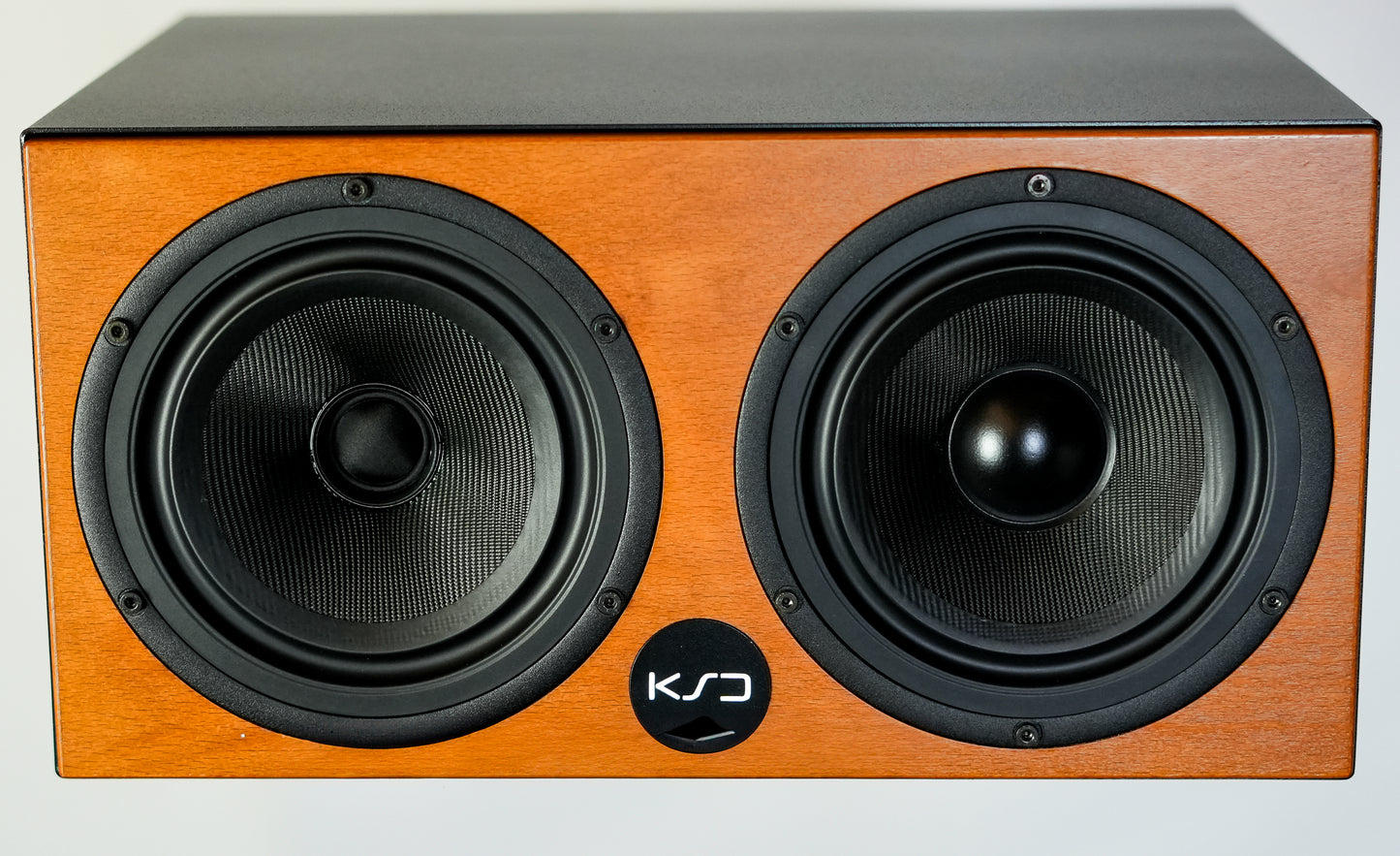

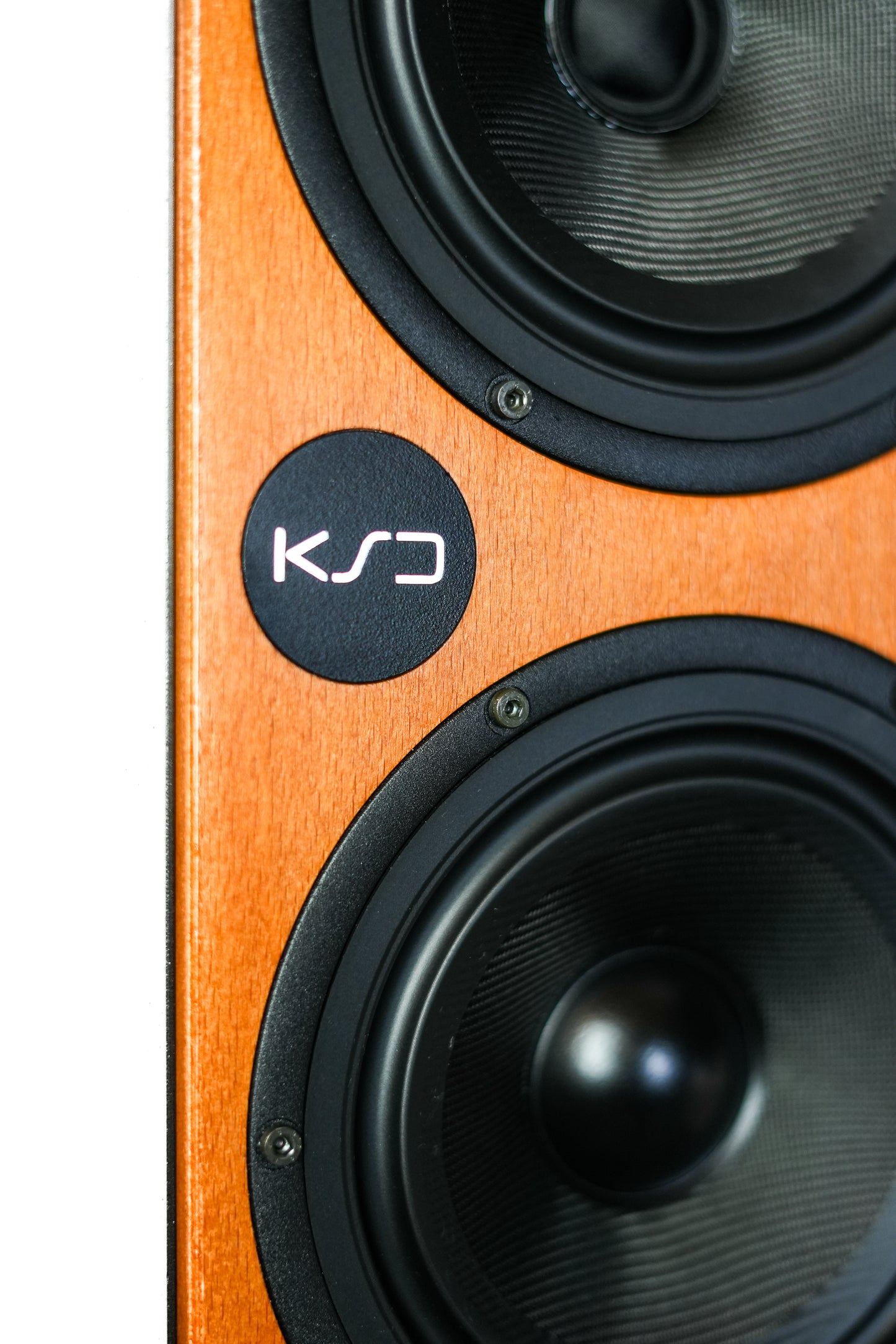

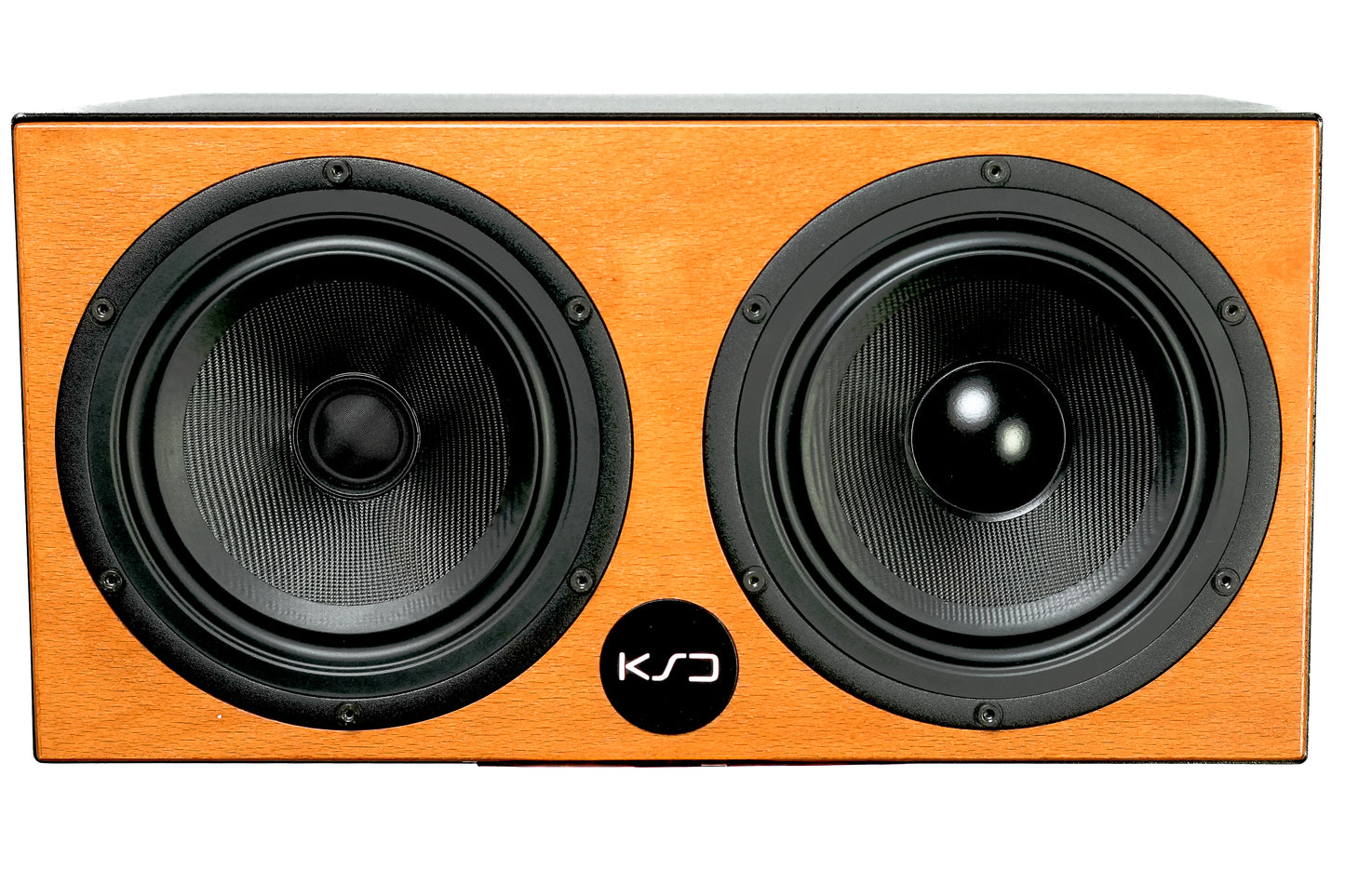

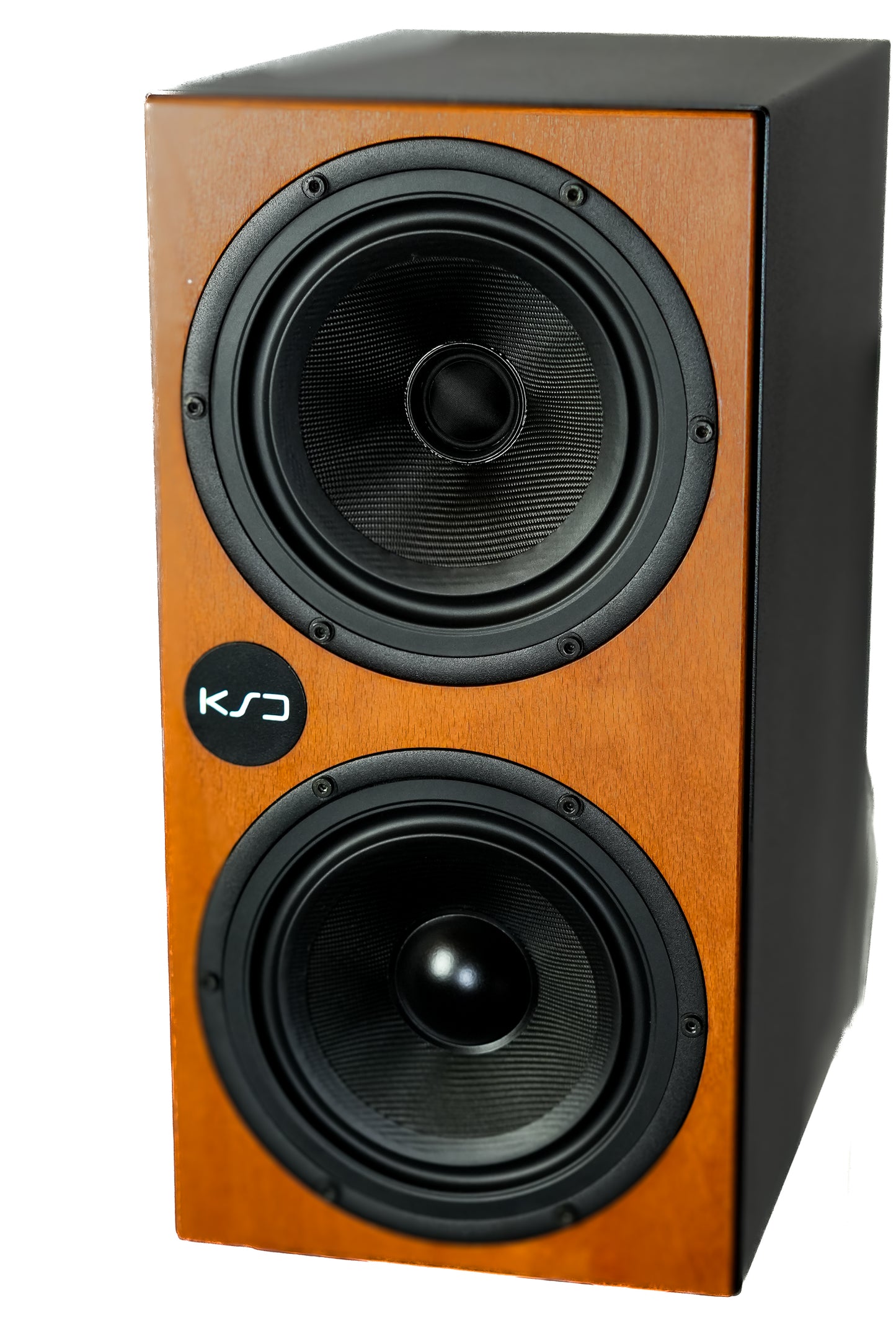

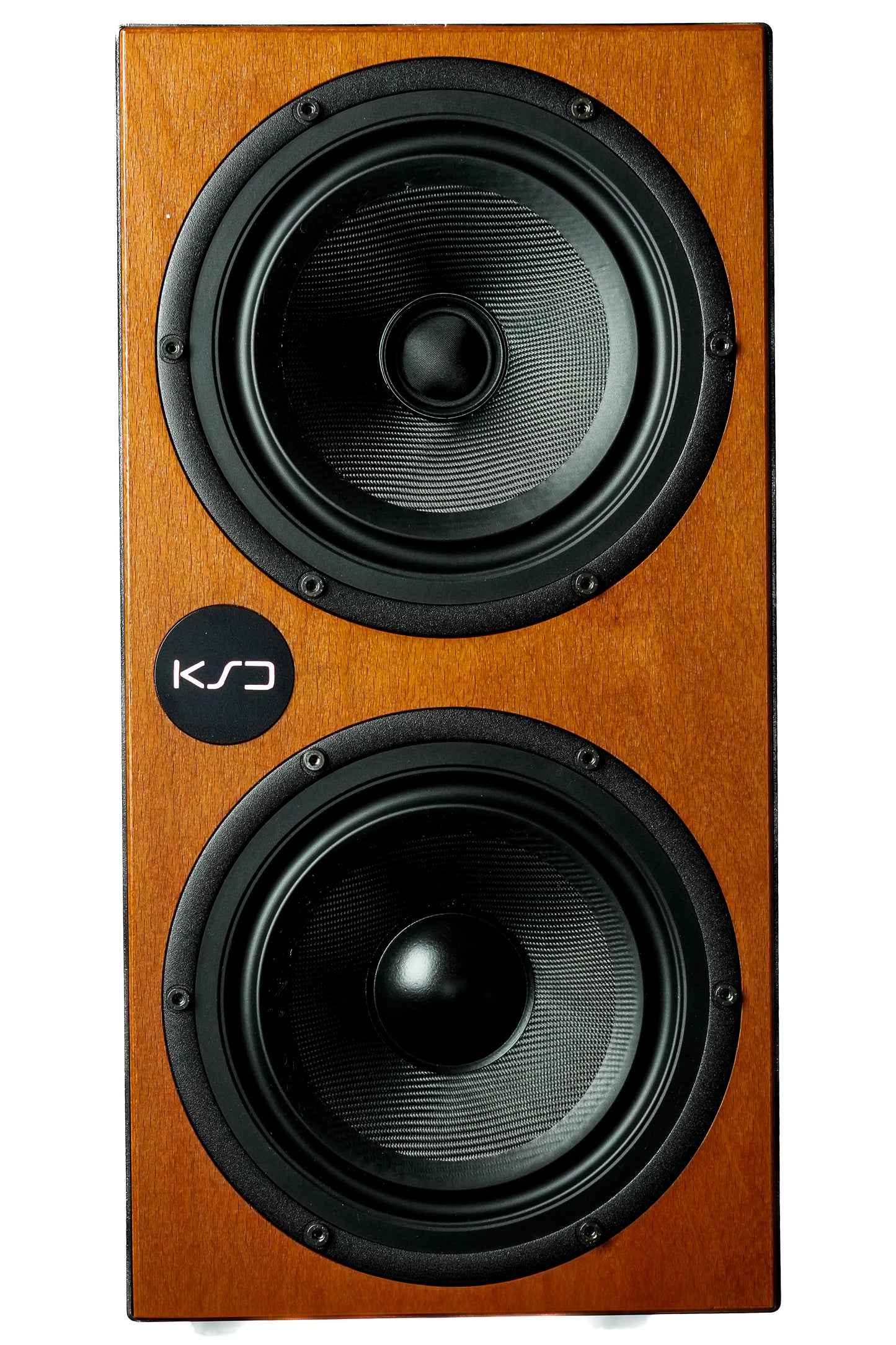

C55 Reference -The real point source

2.5-way Coaxial Main Monitor

The C55-Reference features a dedicated 5.5‘ coaxial-driver and a dedícated 5.5‘ woofer, which delivers exceptional sound performance. With maximum neutrality and minimm distortion, every sound and every impulse is reproduced precisely and musically. The featured drivers are custom made to KSD spec and propietary to KSD. The coaxial design allows the greatest freedom in listening distance and placement (vertical and horizontal placement possible), as the C55-Reference radiates as a real point source and thus works perfectly from near field to greater listening distances. Six parametric user EQs in the FIRTEC processor allow perfect adaptation to the listening room and distance. Thanks to phase-linear dispersion using FIRTEC filters and a coaxial design, the C55-Reference is extremely lively and impulse-true with an accurate representation of panorama width and stage depth. Two bass drivers double the cone surface area and, with their two powerful drives, ensure a clean, “boom-free” bass reproduction. The C55-Reference is therefore an ideal monitoring tool for music production, from tracking and mixing to mastering.
And of course it's also particularly nice to simply enjoy music with the C55 Reference.

C55-Reference in short:

  • for vertical and horizontal use
  • Point source works for all distances
  • Extremely compact size with full bandwidth from 35Hz upwards


Technical Specs of the C55 Reference

  • 2.5-way coaxial main monitor
  • DSP with FIRTEC(™)-procfessor patent:19823110 in FPGA in 24 Bit ADC/DAC
  • FIR-Xover, Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain
  • 1″ neodymium tweeter custom made 5.5″ coaxial chassis, fiber glass cone for sub, 1“ silk tweeter
  • custom made 5.5″ bass chassis, fiber glass cone
  • System Power 350W
  • SPL > 108 dB Peak/pair
  • Frequency response 35 – 22000 Hz
  • Weight 20kg, incl. packaging 22kg
  • Dimensions 400mm x 200mm x 240 mm, 12.2 kg
    compatible with K&M 24471 for wall/ ceiling mounting

More questions? Get in touch!
