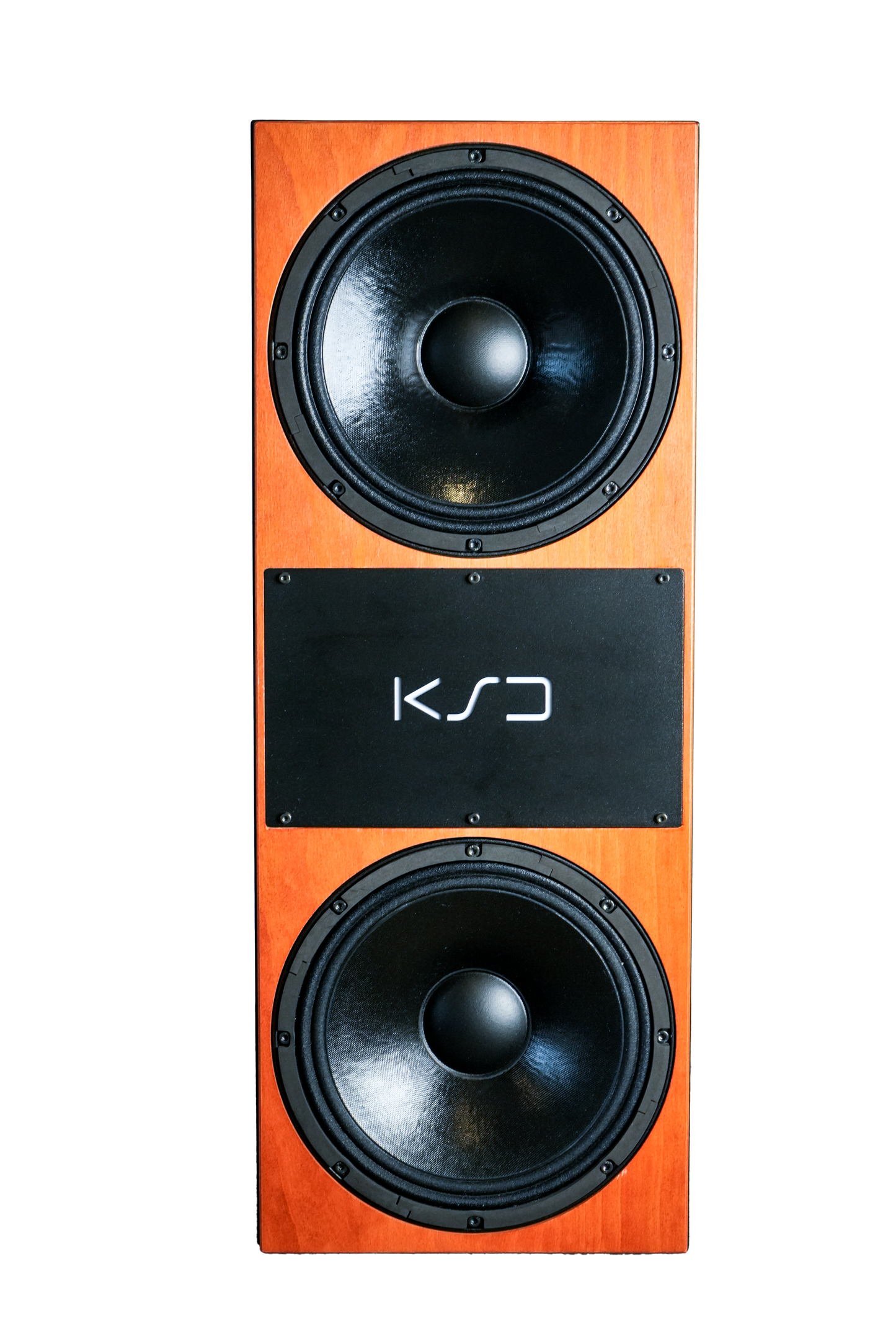

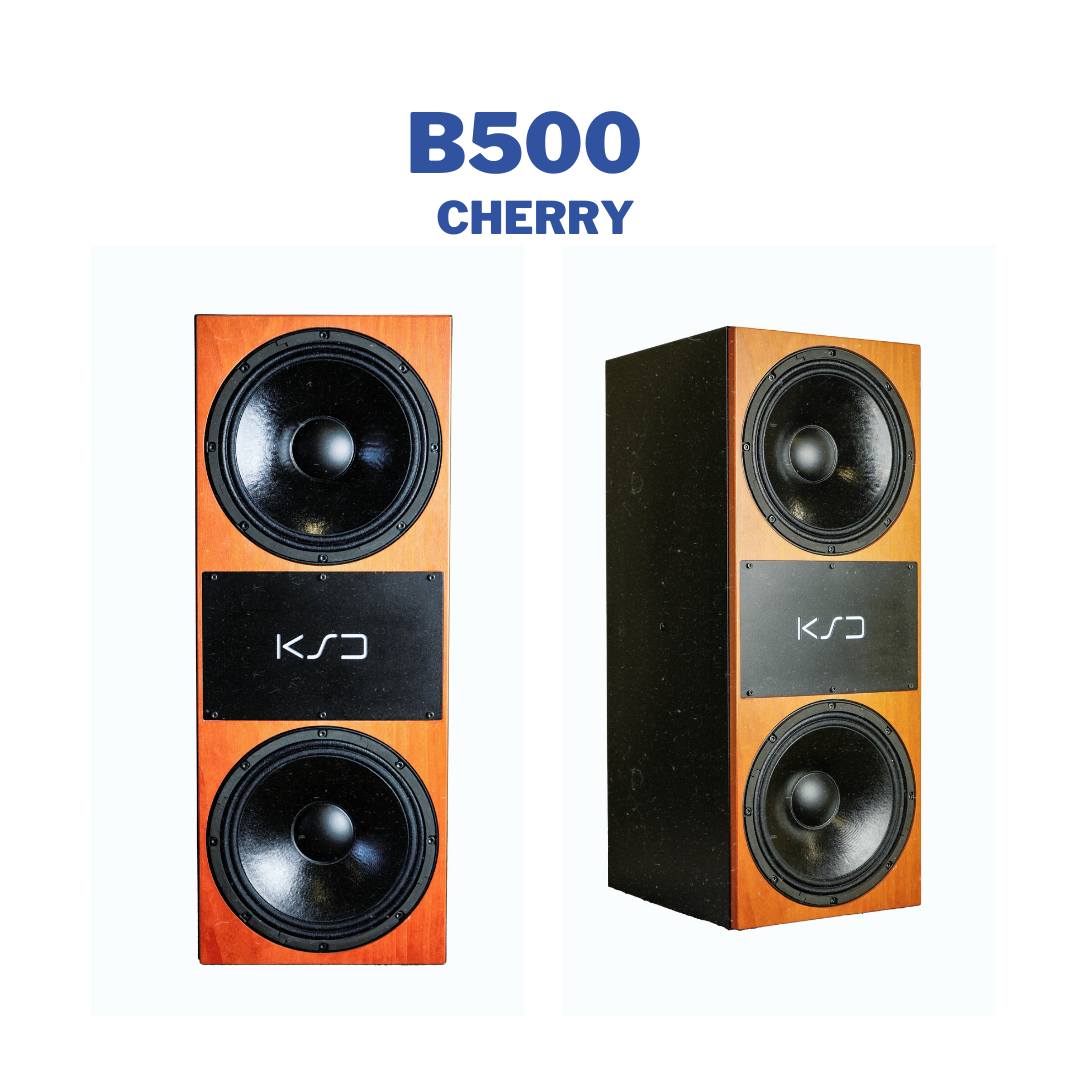

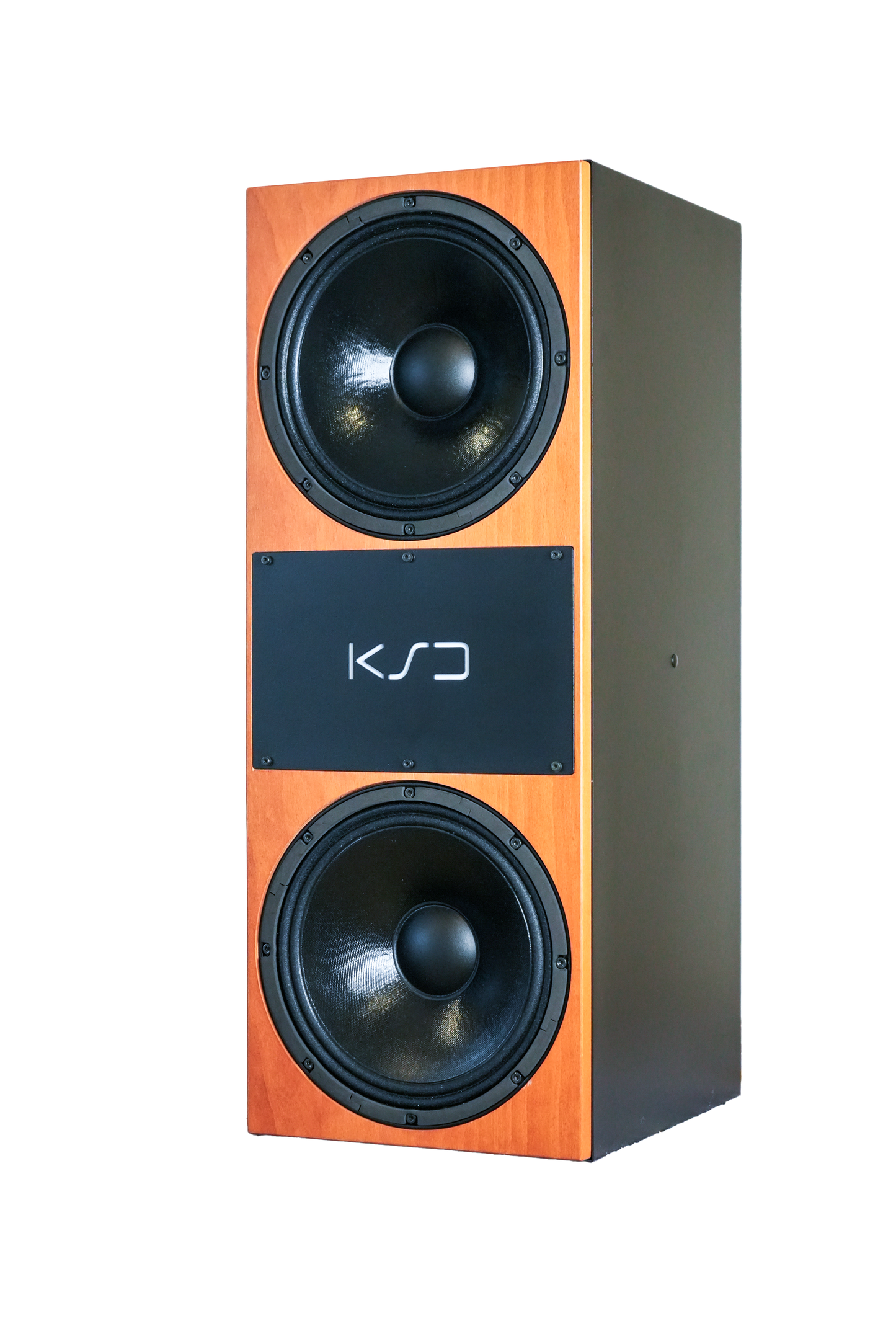

B500 - 10" Bass extension
Perfect match for A500, A200 & C100 Reference
To ensure a controlled and powerful reproduction of deep bass frequencies, the B500-Reference connects to satellite monitors via two XLR outputs, delivering a softened signal above 80Hz. This results in stress-free, detailed bass reproduction without any distortion or excessive pumping. The digital signal processor linearizes the frequency response, while internal filters allow for precise tuning to the room and application. Additionally, the adjustable delay compensates for any spatial offset between the B500-Reference and the satellites.
The B500-Reference’s specially designed high-performance drivers, housed in an optimized steel enclosure, produce an extremely controlled and „dry“ bass signal, eliminating unwanted ventilation noises.
By extending the frequency response and enhancing overall system performance, the B500-Reference can be used as a mono subwoofer extension or as a third channel in existing stereo setups.
Furthermore, the B500-Reference is ideal for transmitting the LFE channel in 5.1 or other 3D audio configurations. It offers the option of using the KSD remote, which allows for adjustments in gain, phase/delay, and six parametric EQs, providing even greater control over the sound.
Technical data of the B500 Subwoofer Extension:
- Double 10″ bass extension for A200mk2, A500
- Signal processing in FPGA in 24 bit ADC/DAC FIRTEC(™) patent:19823110
- X-Over at 80 Hz bessel filtered – forms a main monitor unit in combination with Top

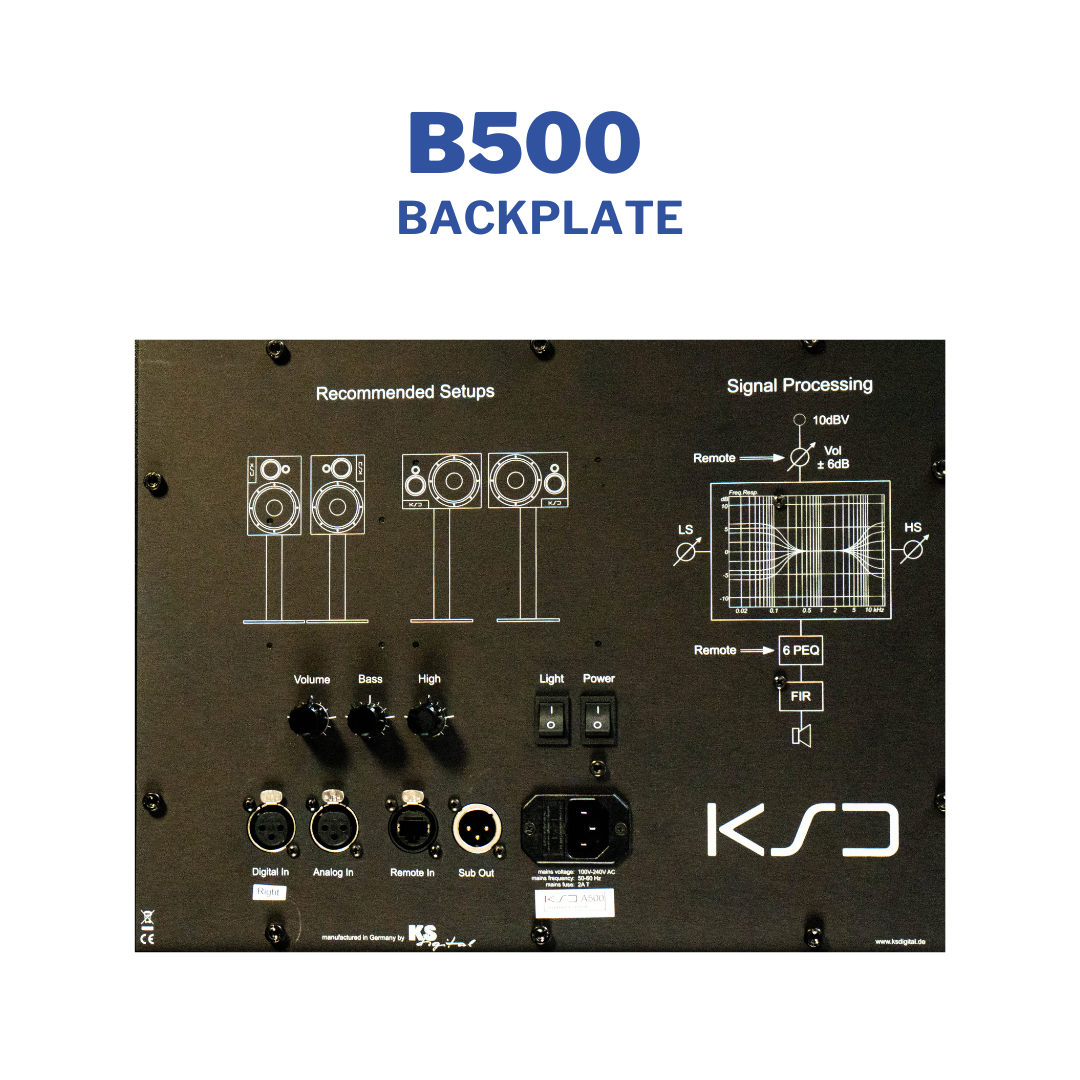

- Processing: Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (via KSD-RC)
- 2 pieces of 10″ high-performance woofer
- Power: 500W (RMS)
- SPL (max) > 132dB Peak/pair (A500)
- Frequency response 24 – 22000 Hz
- Weight 20kg, incl. packaging 22kg
- Dimensions 480 x 240 x 310 mm
- Remote Control (optional) KSD-RC controls 6 user EQs, volume, delay, etc.
It's a match!
Check out the matching A200 2-way speaker.

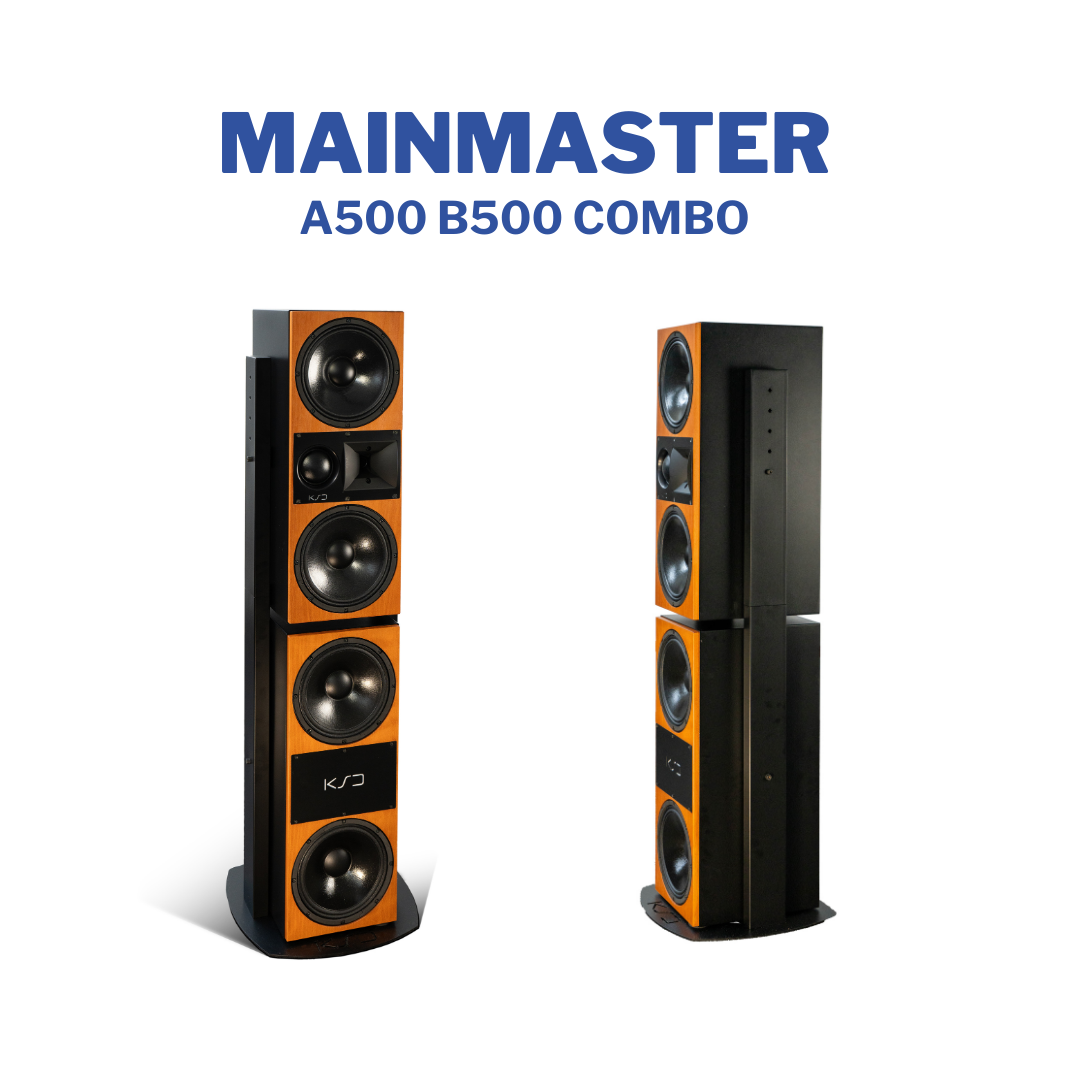

Check out the matching A500 3-way speaker.

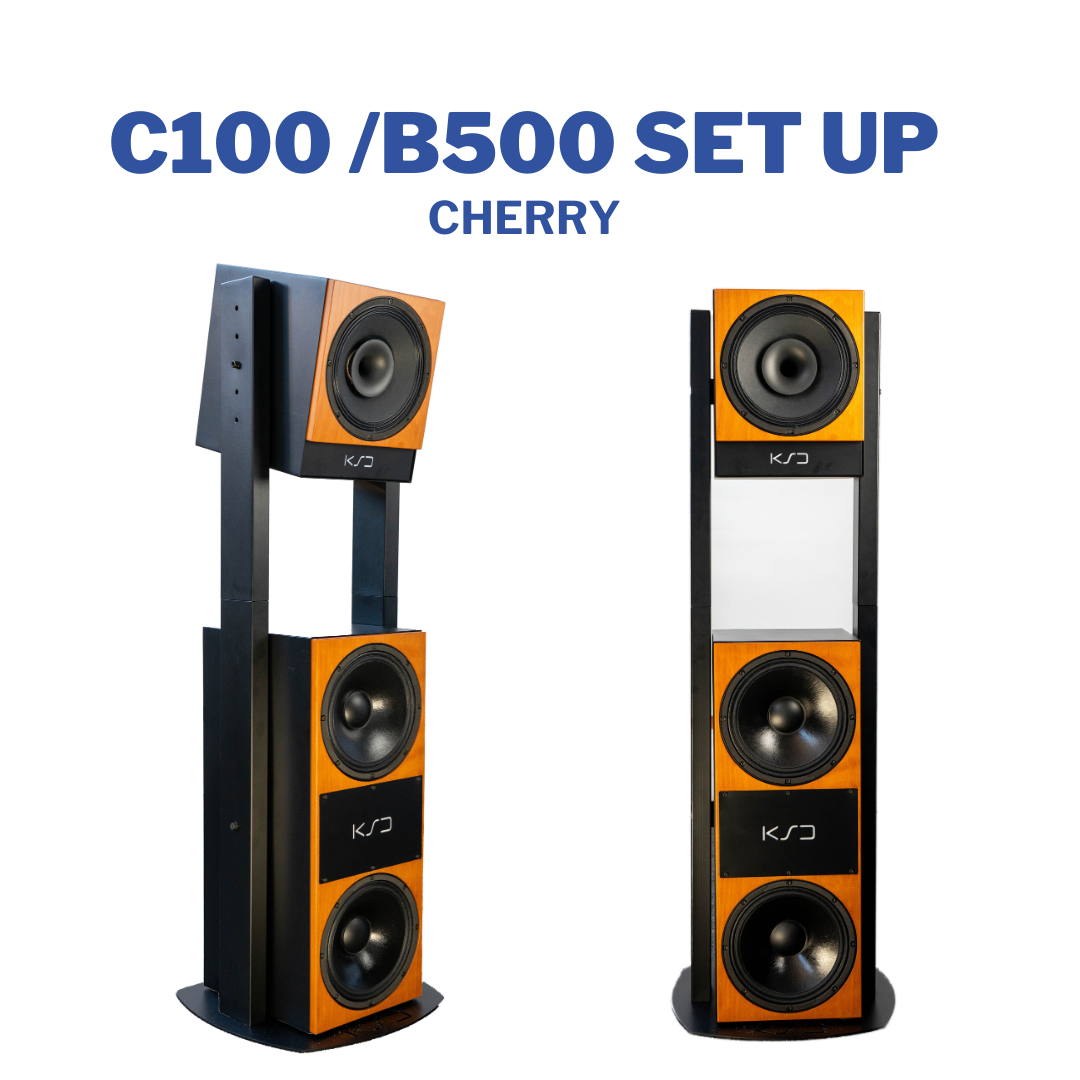

Check out the matching C100 Reference coaxial speaker.
Check out the optional KSD- RC.
